Sheet metal

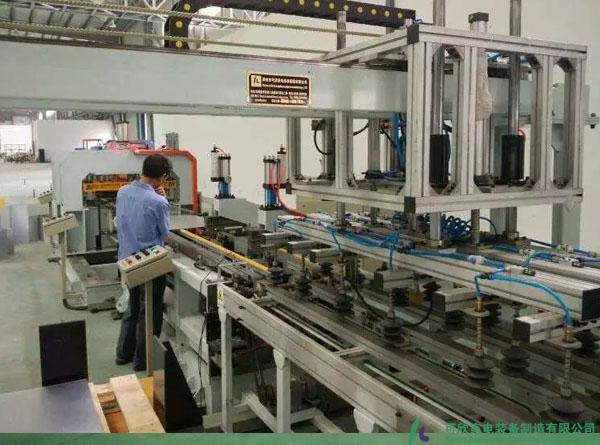

  • Freezer liner side panel line
Freezer liner side panel line

Freezer liner side panel line

  • Product description: Freezer liner side panel line
  • INQUIRY

Device dimension (reference) : about 14000mm * 4000mm.

Height of equipment working face: 900mm from the ground.

Stations:4

Molding product specifications:Meet the requirements of 11 types of product drawings.(See the drawing list)

Expanded length: 700 ~ 2000mm; Expanded width: 400 ~ 800mm

Equipment takt:2 bending R < or L molding 1 bending R >:15~~18s/pcs, 4 bending R:32~37s/pcs,it does not contain artificial feeding time.

Applicable material: t=0.35 ~ 0.4mm; Embossed aluminum sheet

Production line flow direction: see layout plan

Product qualification rate: equal to or greater than 99.5%

Total electric capacity: about 20KVA(380V 50HZ)

Air capacity: 0.4 ~ ~ 0.7Mpa

Machining accuracy:Punching precision:≦±0.15mm,cutting burr:≦±0.06mm,U bending dimensional accuracy:≦±0.5mm

Transportation way:A flat belt with a guide strip(Increase the covering soft nap on the surface of friction belt,raise belt life,the guide bar is zigzag.)
